Description

Function description

This function block enables PID control of servo motors with or without positional feedback. The function block can be switched to be the controller (PIDFF, PI_B) so that the digital outputs become the two logical outputs RAISE and LOWER.

If the function block uses positional feedback, then positioning controlling of the actuator will be performed. If positional feedback is not being used, the controller and the SERVO function block operate a continuous static control together.

and can be configured as additional parameters.

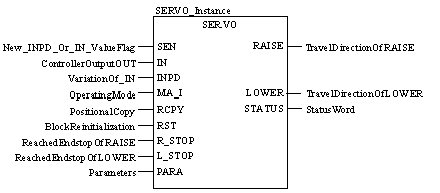

Representation in FBD

Representation:

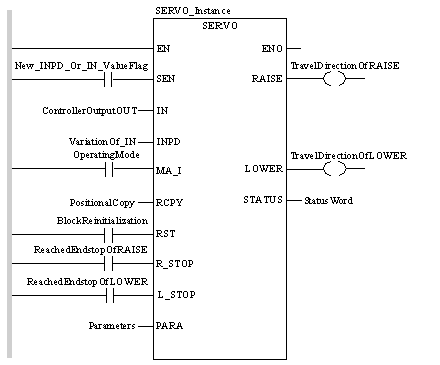

Representation in LD

Representation:

Representation in IL

Representation:

CAL SERVO_Instance (SEN:=New_INPD_Or_IN_ValueFlag,
    IN:=ControllerOutputOUT, INPD:=VariationOf_IN,
    MA_I:=OperatingMode, RCPY:=PositionalCopy,
    RST:=BlockReinitialization,
    R_STOP:=ReachedEndstopOfRAISE,
    L_STOP:=ReachedEndstopOfLOWER, PARA:=Parameters,
    RAISE=>TravelDirectionOfRAISE,
    LOWER=>TravelDirectionOfLOWER, STATUS=>StatusWord)

Representation in ST

Representation:

SERVO_Instance (SEN:=New_INPD_Or_IN_ValueFlag,
    IN:=ControllerOutputOUT, INPD:=VariationOf_IN,
    MA_I:=OperatingMode, RCPY:=PositionalCopy,
    RST:=BlockReinitialization,
    R_STOP:=ReachedEndstopOfRAISE,
    L_STOP:=ReachedEndstopOfLOWER, PARA:=Parameters,
    RAISE=>TravelDirectionOfRAISE,
    LOWER=>TravelDirectionOfLOWER, STATUS=>StatusWord) ;

Parameter description SERVO

Input parameter description:

Parameter	Data type	Meaning
SEN	BOOL	"1" : Including a new value at the INPD or IN inputs "0" : no inclusion of the new values of INPD or IN
IN	REAL	Control output OUT (0 to 100%)
INPD	REAL	Output alteration OUTD of the controller (-100% to 100%)
MA_I	BOOL	Control operating mode (Output MA_O) "1" : Automatic mode "0" : Manual or tracking mode
RCPY	REAL	Positional feedback (0 to 100%)
RST	BOOL	"1" : Reinitialization of the function block (resetting outputs and the internal function block status)
R_STOP	BOOL	End position RAISE reached
L_STOP	BOOL	End position LOWER reached
PARA	Para_SERVO	Parameter

Output parameter description:

Parameter	Data type	Meaning
RAISE	BOOL	Logical output in the direction RAISE
LOWER	BOOL	Logical output in the direction LOWER
STATUS	WORD	Status word

Parameter description Para_SERVO

Data structure description

Element	Data type	Meaning
en_rcpy	BOOL	"1" : Function with positional feedback (including RCPY)
rcpy_rev	BOOL	"1" : Inversion of RCPY "0" : no inversion of RCPY
t_motor	TIME	Actuator opening time
t_mini	TIME	Minimum impulse length
