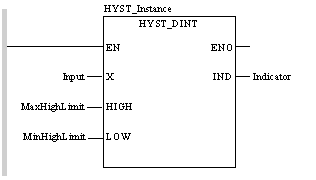

Description

Parameter	Data type	Meaning
X	INT, DINT, UINT, UDINT, REAL	Input variable
HIGH	INT, DINT, UINT, UDINT, REAL	Maximum upper limit
LOW	INT, DINT, UINT, UDINT, REAL	Minimum upper limit

Parameter	Data type	Meaning
IND	BOOL	Display: Upper limit reached

EN

EN stands for ENable; it is an optional block input. When the EN input is enabled, an ENO output is set automatically.

If EN = 0, the block is not enabled; its internal program is not executed, and ENO is set to 0.

If EN = 1, the block's internal program is run and ENO is set to 1. If an error occurs, ENO is set to 0.

If the EN input is not connected, it is set automatically to 1.

ENO

ENO stands for Error NOtification; this is the output associated with the optional input EN.

If ENO is set to 0 (because EN = 0 or in case of an execution error):

the status of the function block outputs remains the same as it was during the previous scanning cycle that executed correctly;
the output(s) of the function, as well as the procedures, are set to "0".

INT

INT is the abbreviation of single INTeger (encoded in 16 bits).

The upper/lower limits are as follows: -(2 to the power of 15) to (2 to the power of 15) - 1.

Example:

-32768, 32767, 2#1111110001001001, 16#9FA4.

DINT

DINT is the abbreviation of Double INTeger (encoded in 32 bits).

The upper/lower limits are as follows: -(2 to the power of 31) to (2 to the power of 31) - 1.

Example:

-2147483648, 2147483647, 16#FFFFFFFF.

UINT

UINT is the abbreviation of the Unsigned INTeger format (encoded in 16 bits). The upper/lower limits are as follows: 0 to (2 to the power of 16) - 1.

Example:

0, 65535, 2#1111111111111111, 8#177777, 16#FFFF.

UDINT

UDINT is the abbreviation of Unsigned Double INTeger (encoded in 32 bits). The upper/lower limits are as follows: 0 to (2 to the power of 32) - 1.

Example:

0, 4294967295, 2#11111111111111111111111111111111, 8#37777777777, 16#FFFFFFFF.

REAL

The REAL type is encoded in a 32 bit format.

The possible value ranges are shown in the figure below:

When a result is:

between -1,175494e-38 and 1,175494e-38, it is considered to be a DEN;
less than -3.402824e+38, the symbol -INF (for - infinity) is displayed;
greater than +3.402824e+38, the symbol INF (for + infinity) is displayed;
undefined (square root of a negative number), the symbolNAN is displayed.

NOTE: The IEC 559 standard defines two classes of NAN: the silent NAN (QNAN) and the signaling NAN (SNAN). A QNAN is a NAN with a most significant fraction bit while an SNAN is a NAN without a most significant fraction bit (bit number 22). QNANs can be propagated via most arithmetic operations without throwing an exception. As for SNANs, they generally indicate n invalid operation when they are used as operands in arithmetic operations (see %SW17 and %S18).

NOTE: When a DEN (non-standardized number) is used as an operand, the result is not significant.

BOOL

BOOL is the abbreviation for the Boolean type. This is the basic data type in computing. A BOOL variable can have either of the following two values: 0 (FALSE) or 1 (TRUE).

A bit extracted from a word is of type BOOL, for example: %MW10.4.
